| Specification |
| Frames |
- Low Profile 2 7/8" high stainless steel
- Heavy Duty Series has a 6 X 1 channel
- 11 gauge 304 #3 Finish Stainless Steel
|
| |
| Conveyor Widths: |
- Belts narrower than frame width
- 2 1/8" 100
|
| |
| Sprockets |
- Plastic or Stainless 2 to 6 diameter
|
| |
| Drives: |
- End
- Center
- Motor Mounting: Direct, Top, Below or Side
|
| |
| Live Load Capacity: |
- Up to 100 lbs per foot loading.
|
| |
| Features |
- Space saving conveyor
- Modular Design flexibility
- Belts are less than frames
- Wide variety of belt sizes and types
- Precision machined conveyor components
- Low profile to work in tight places
- Belts are factory tracked
- Endless belts require less maintenance than metal laced belts
- Conveyors are wash down rated for harsh environments
- Supports are USDA approved design
- Controls are Nema 4X rated to meet harsh wash down requirements
|
|
 |

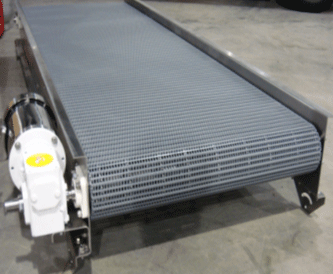

| Heavy Duty Stainless Steel Conveyors |
| |
| Applications |
- Transportation
- Accumulation
- Sortation
- Indexing
- Part Orientors
- Metering Conveyors
- Assembly Lines
- Work Stations
- Cooling
|
| |
| Belt Types |
- Intralox Plastic Open or Closed
- Cleated
- Fabric
|
|
