Plastic Belt Conveyor
Specification
Frames
  • 2 7/8" high aluminum
  • T-slots along sides for bracket mounting
  • 16 gauge stainless steel slider bed
  • Closed or open beds
  • Heavy Duty 11 gauge Stainless Frames

Conveyor Widths:
  • 2 1/8" – 100 1/2"

Conveyor Sprockets
  • 2 1/8" – 6 Diameter
  • Plastic, metal or stainless steel

Drives:
  • End – Direct, Top, Below and Center

Live Load Capacity:
  • Up to 25 lbs/ft.

Features
  • Space saving conveyor
  • Components are held to industry standards
  • Design flexibility
  • Belts are less than frames
  • Wide variety of belt sizes and types
  • Precision machined conveyor components
  • Low profile to work in tight places
  • Rollers are machined tapered
  • Belts are factory tracked
  • Endless belts require less maintenance than metal laced belts
  • Conveyors are rated for industrial environments
  • Supports are modular design
  • Controls are Nema 12 rated to meet factory requirements

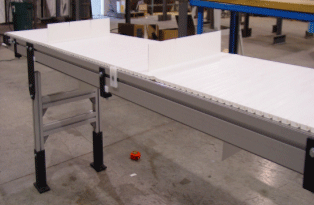

Plastic Belt Conveyors
Low Profile Plastic Belt Conveyors for all your material handling applications. We have the latest in technology.

Applications
  • Transportation
  • Accumulation
  • Sortation
  • Automated Component Feeders
  • Metering Conveyors
  • Assembly Lines
  • Work Stations

Belt Types
  • Intralox Plastic chain
  • Cleats or special attachments
  • Most modular chains manufacturers
